    TS130CT-01 Electro Optical And Infrared Sensors EO/IR Surveillance Thermal Camera For HD Visible

    TS130CT-01 Electro Optical And Infrared Sensors (EO/IR) Surveillance Thermal Camera For HD Visible And Long Wave Infrared Vi


    TS130CT-01 is three- axis gyro stabilized gimbal platform, support 360° continuous rotation, Built-in
    30X HD zoom camera and longwave infrared module(LWIR uncooled) and laser rangefinder,
    mainly used in airborne imaging detection, recognition, tracking and ranging and positioning. etc,
    meet the needs of mapping, surveillance, reconnaissance and other application scenarios.
    TS130CT-01 with light weight, mature and reliable technology, and can be assembled in various types
    of UAV and other aviation carriers, it can also be assembled on ships and vehicles to meet the needs
    of sea and air.


    Functions


    a) Provide the HD visible and long wave infrared video and image for detection area
    b) High precision visual axis stabilization function
    c) With the capability of detection and recognition for ground target
    d) Support search, tracking, lock, guiding, etc working ways
    e) With character overlay, custom and display functions;
    f) With target positioning functions
    g) With laser ranging function
    h) With self - check and fault diagnosis function

    Specifications


    EO sensorWavelength8μm~14μm
    Resolution1920x1080
    Focal length
    25mm/F1.0
    FOV
    17.4º×14º
    Video output
    HD-SDI,1080P,30Hz
    Distance

    PEOPLE:Detection 0.7km;Recognition 0.2km

    VEHICLE:Detection 4.2km;Recognition 1km

    Servo SystemRotating limits
    360º continuous Pan, Pitch: -110° ~+10 º, Rolling: -40°~+40°
    Angular accuracy:≤2mrad
    Stablization accuracy≤200μrad(1σ)(2°/Hz,1°/Hz Swing)
    Max.angular speed≥50°/s
    Max. angular acceleration:≥90°/S
    Tracking FunctionsMotion speed:30pixel/frame
    Target imaging contrast:8%
    Target imaging pixel(Mini)4x3 pixels
    SupportAnti -occlusion without loss of function
    InterfaceCommunication
    interface
    RS422 x2
    Video outputHD-SDI x1

    Mechanical Drawing



    Company Profile

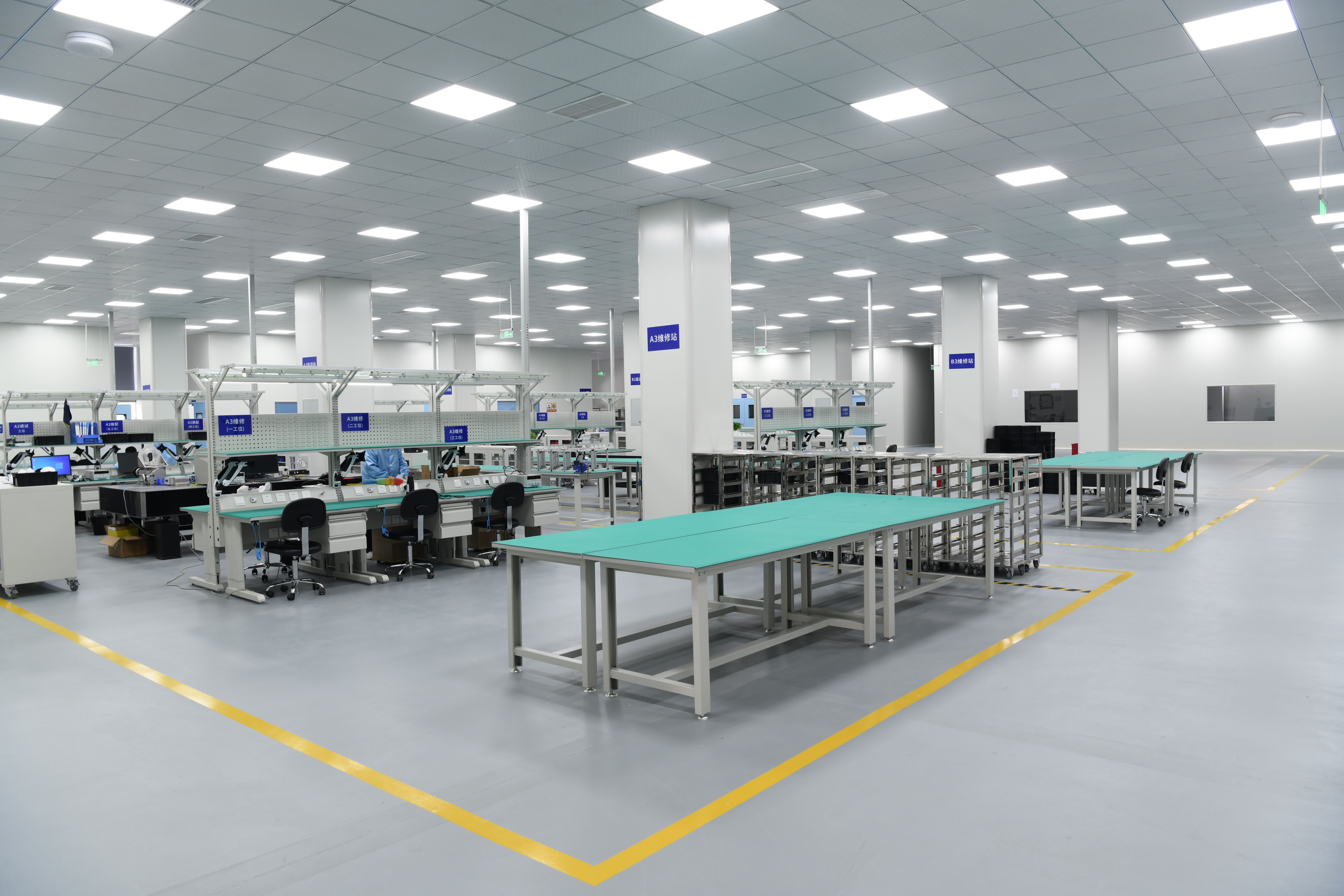

    Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress , and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise
