| Brand Name : | HONPHO |
| Model Number : | TS03 |
| Certification : | ISO9001:2015/GB/T 19001-2016 |
| Price : | Negotiation |
| Supply Ability : | 100 set per month |
| Delivery Time : | 1 month |
2 Axis 2.5KG Electro Optical Infrared Systems with Laser Irradiation Function
Introduction of 2 Axis 2.5KG Electro Optical Infrared Systems with Laser Irradiation Function
TS03 is mainly composed of a stable turret, an optical load and an information processing circuit.The optical load mainly consists of visible light imaging module, long wave uncooled infrared imaging module and laser rangerfinder/ illuminator. It is mainly applied to provide laser spot indication on targets for semi-active laser terminal guided weapon with search, tracking, locking, guiding and other working modes
Functions
1. High precision LOS stabilization
2. Visible and infrared dual-light imaging
3. Detection and identification of ground targets
4. Search, track, lock, guide and other operating modes
5. Target locating capability
6. Laser illumination and ranging
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 | |
| Focal length | 4.3mm～129mm(30X) | |
| FOV | 63.7°～2.3° | |
| Video output | HD-SDI(1080P 30Hz) | |
| Distance | PEOPLE: Detection 6km; Recognition 2km VEHICLE: Detection 15km; Recognition 8km | |
| IR sensor | IR Type | LWIR(un-cooled) |
| Wavelength | 8～14μm | |
| Resolution | 640x512 | |
| Pixel | 12um | |
| NETD | 50mk | |
| Focus length | 35mm/F1.0 | |
| FOV | 12.4º×9.9º | |
| Distance | Target: 2.3m*2.3m Vehicle Detection: 5.7; Recognition: 1.4 | |
| Laser rangefinder | Wavelength | 1064nm |
| Laser energy | ≥25mJ | |
| Ranging distance | 120m~5000m | |
| Ranging accuracy | ≤3m | |
| Servo System | Rotating limits | Azimuth: nX360º continuous; Pitch: -110° ~+10 º |
| Angular accuracy: | ≤2mrad | |
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz) | |
| Max.angular speed | ≥60°/s | |
| Max. angular acceleration: | ≥60°/S | |
| Interface | Communication interface | RS422*2 (TTL optional) |
| Video output | HD-SDI*1 | |
| General | Dimension | ≤Φ172mm×200mm |
| Weight | ≤2.5kg | |
| Voltage | DC24V(20V~28V) | |
| Power consuption | Average:≤50W, Peak: ≤100W | |
| Working temperature | -20℃～60℃ | |
| Storage temperature | / | |
| Tracking Functions | Motion speed: | 30pixel/ frame |
| Target imaging contrast: | 5% | |
| Target imaging pixel(Mini) | 4x3 pixels | |
| Support | Anti -occlusion without loss of function |
Mechanical Drawing

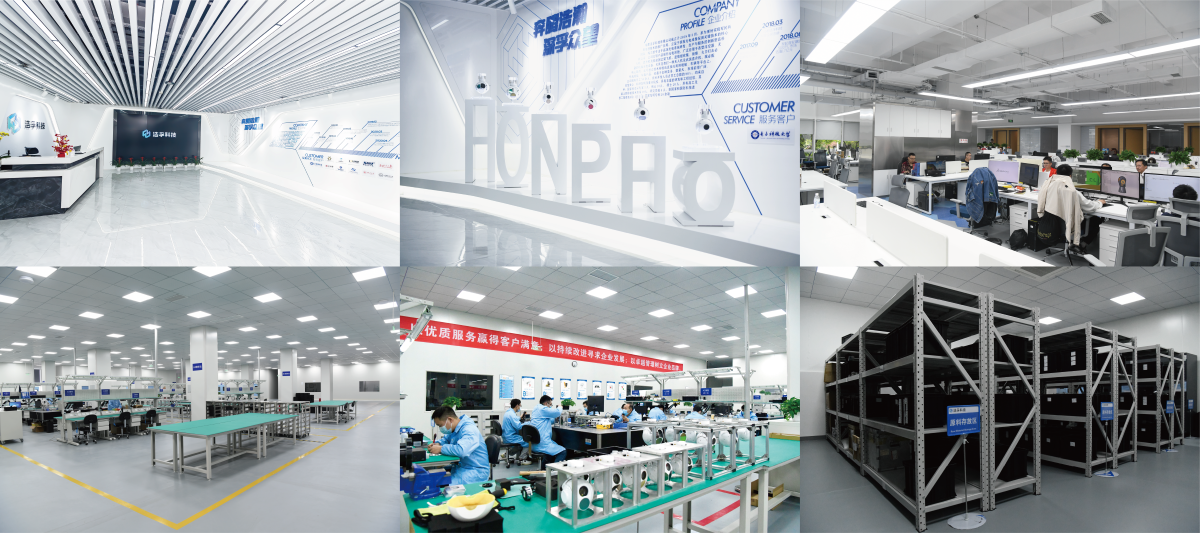

Company Profile
Chengdu HONPHO Technology Co., Ltd. was established in March 2018. It is a national high-tech enterprise focusing on R&D, intelligent manufacturing and service of high-end photoelectric system. HONPHO main product is spherical photoelectric payload systems, this payload wildly deployed in UAV,unmanned ships, umanned vehicle,helicopter and low speed fixed wing aricrafy. especially for reconnaissance and strike UAV and armed helicopter. HONPHO has nearly 5,000 square meters of space to meet the needs of R&D, production, operation and office. More than 100 employees, include 2 national senior experts, 3 doctors, 21 masters, 10 technical experts with senior titles and 4researchers are joined HONPHO. HONPHO won more than 10 prizes of national and national defense science and technology progress, and have over 20 intellectual property rights. We are committed to building HONPHO into a world-renowned photoelectric system high-tech enterprise.
|
|
