    Three Axis Gyro Stabilized Gimbal Airborne Electro Optical Pod EO Sensor

    Ask Lasest Price
    Brand Name : HONPHO
    Model Number : TS120BT-02
    Certification : ISO9001:2015/GB/T 19001-2016
    Price : Negotiation
    Supply Ability : 30pcs per Month
    • Product Details
    • Company Profile

    Three Axis Gyro Stabilized Gimbal Airborne Electro Optical Pod EO Sensor

    Three Axis Gyro Stabilized Gimbal Airborne Electro Optical Pod EO Sensor


    TS120BT-02 is three- axis gyro stabilized gimbal airborne electro optical pod , 360° continuous rotation servo motor, Built-in 30X HD zoom camera and 1km laser rangefinder, the total weight about 860g.TS120BT-02 airborne electro optical pod with light weight, mature and high stabilization accuracy pan tile servo system technology, and can be asse, it can also be assembled on UAV,ships and vehicles to meet the needs of sea and air.


    Functions


    1. Clear and visible video and image for effective target area detection.

    2. High-precision visual axis stabilization for steady imaging in challenging environments.

    3. Enhanced surveillance capabilities with ground target detection and identification.

    4. Versatile working modes: search, track, lock, and guide.

    5. Advanced features: character overlay, custom settings, and display functions.

    6. Self-check and fault diagnosis for reliable performance.

    7. Improved tracking with target position and laser ranging support.


    Specifications


    EO sensorWavelength0.4μm~0.9μm
    Resolution1920x1080
    Focal length4.3mm~129mm(30X)
    FOV63.7°~2.3°
    Video outputHD-SDI(1080P 30Hz)
    DistancePEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km
    Laser rangefinderWavelength905nm
    Performance3m~1km
    Ranging distance3~1000m
    Ranging accuracy±3
    Servo SystemRotating limits360º continuous Pan, Pitch: -110° ~+10 º
    Angular accuracy:≤2mrad
    Stablization accuracy≤100μrad(1σ)(2°/Hz,1°/Hz Swing)
    Max.angular speed≥50°/s
    Max. angular acceleration:≥90°/S
    Tracking FunctionsMotion speed:30pixel/frame
    Target imaging contrast:8%
    Target imaging pixel(Mini)4x3 pixels
    SupportAnti -occlusion without loss of function
    InterfaceCommunication
    interface
    RS422 x2(TTL optional)
    Video outputHD-SDI x1

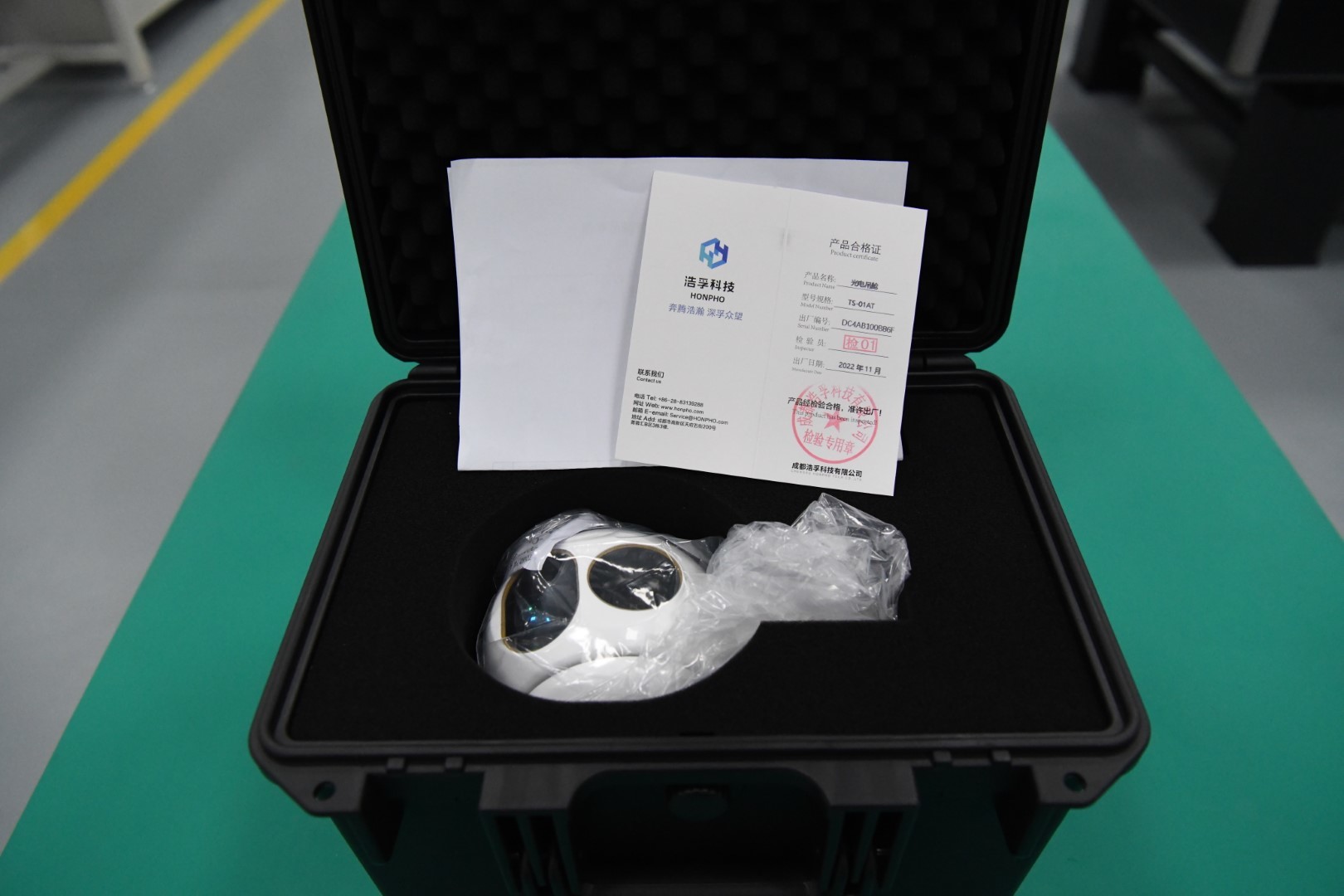

    Three Axis Gyro Stabilized Gimbal Airborne Electro Optical Pod EO SensorThree Axis Gyro Stabilized Gimbal Airborne Electro Optical Pod EO SensorThree Axis Gyro Stabilized Gimbal Airborne Electro Optical Pod EO Sensor


    Mechanical Drawing
